Precision Pneumatics
of Vermont LLC
English Sizes
Bore Size
Outside
Diameter
Width
Adjustment
Range
Body
Screw
Nut Screw
Steel Part
No.
Stainless
Part No.
Steel Price
Stainless
Price
CAD File
.250
.625
.475
.19
4-40
2-56
TE025L
TE025S
$22.57
$33.45
.375
.875
.475
.19
6-32
2-56
TE038L
TE038S
$24.17
$38.84
.500
1.125
.750
.32
8-32
5-40
TE050L
TE050S
$27.03
$46.03
.625
1.312
.750
.32
8-32
6-32
TE063L
TE625S
$30.02
$47.98
.750
1.500
.875
.38
10-32
6-32
TE075L
TE075S
$31.54
$53.69
1.000
1.750
.875
.38
10-32
8-32
TE100L
TE100S
$34.82
$56.55
1.250
2.062
1.000
.44
¼-20
8-32
TE125L
TE125S
$38.14
$63.75
1.375
2.250
1.000
.44
¼-20
8-32
TE138L
TE138S
$41.14
$66.81
1.500
2.375
1.000
.44
¼-20
8-32
TE150L
TE150S
$43.86
$70.76

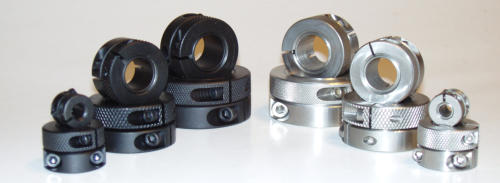

Fine Adjust Shaft Collars
Metric Sizes
Bore Size
Outside
Diameter
Width
Adjustment
Range
Body
Screw
Nut Screw
Steel Part
No.
Stainless
Part No.
Steel Price
Stainless
Price
CAD File
6
15.9
12.0
4.0
M2.5
M2
TM006L
TM006S
$22.57
$33.45
8
19.0
12.0
4.0
M2.5
M2
TM008L
TM008S
$23.38
$35.80
10
22.2
12.0
4.0
M2.5
M2
TM010L
TM010S
$25.43
$40.74
12
28.6
19.1
7.9
M4
M2.5
TM012L
TM012S
$27.03
$46.03
16
33.3
19.1
7.9
M4
M3
TM016L
TM016S
$30.02
$47.98
20
38.1
22.2
9.5
M5
M3
TM020L
TM020S
$31.54
$53.69
25
44.5
22.2
9.5
M5
M4
TM025L
TM025S
$34.82
$56.55
30
52.4
25.4
11.1
M5
M4
TM030L
TM030S
$38.14
$63.75
ph 631-332-8107

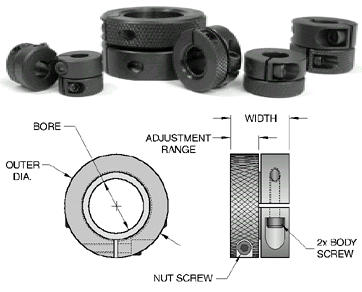

To use, slide the
whole collar in place
and tighten the 2
body screws. Then
rotate the knurled
nut to the fine adjust
position and tighten
the nut screw.
To Order, email or call:
